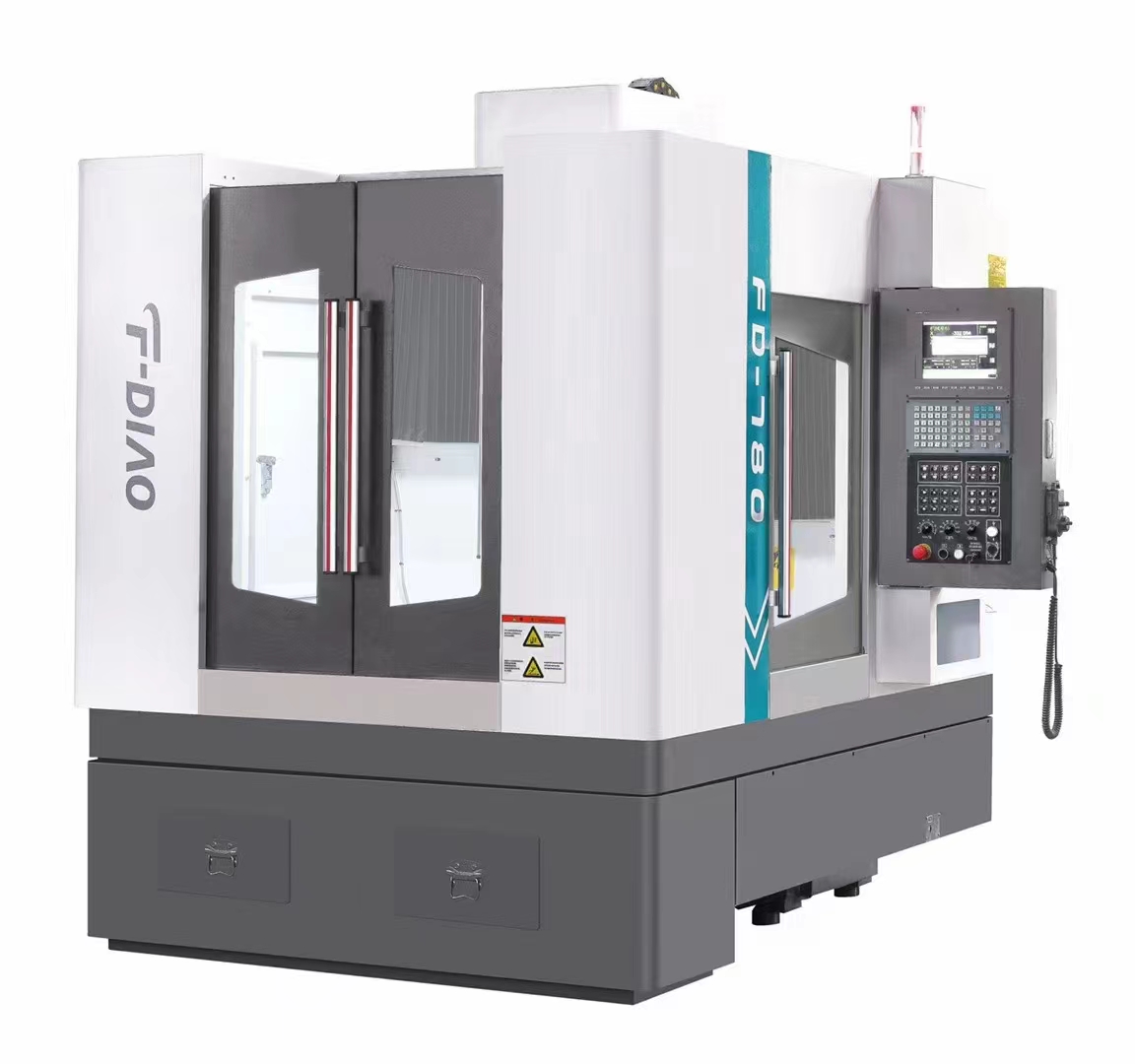

Product Profile：FD-870 Flying carving and milling machine The main components have a heavy body, strong rigidity, constant power of the spindle speed, a wide range, and high torque at low speed, which can perform powerful cutting. It is directly connected to the AC servo motor through the coupling and the ball screw pair, and adopts a well-known brand of linear rolling guide pair, which has a small dynamic and static friction coefficient and a fast response speed.
Contacts：13777020080
FD-870 Flying carving and milling machine It adopts a humanized fully enclosed exterior structure, a fixed gantry mechanical structure principle design, and a low bed and main column crossbeam integrated structure to make the machine tool more stable. The machine adopts a coupling motion design, equipped with a high-performance servo motor, high-precision linear guide, high-precision ball screw, high-precision water-cooled spindle, and a powerful, easy-to-operate, and easy-to-learn Taiwan control system.
It has the functional characteristics of precise processing, stability, flexibility, super rigidity, high engraving processing accuracy, and fast cutting speed. It can be widely used in various steel molds such as injection molds, cold stamping molds, and high-speed processing and engraving of materials such as copper, iron, aluminum, steel, plexiglass, and hardwood, such as hardware stamping molds, high-frequency molds, point plastic molds, and sole models.
FD-870 Flying carving and milling machine Technical Parameters
| 序号 | 配 套 件 名 称 | FD-870 |
| 1 | X轴行程 X axis travel (mm) | 700 |
| 2 | Y轴行程 Y axis travel (mm) | 800 |
| 3 | Z轴行程 Z axis travel (mm) | 350 |
| 4 | 龙门有效宽度 Distance between two columns (mm) | 820 |
| 5 | 工作台面到主轴端面的距离 Distance from worktable to spindle end face (mm) | 90-450 |
| 6 | 工作台尺寸 Worktable size (mm) | 700*850 |
| 7 | 工作台承重 Loading of worktable kg | 800 |
| 8 | T型槽规格 T-groove size (mm) | 18*140*5 |
| 9 | 最大切削速度X/Y/Z Max cutting speed (m/min) | 8/8/8 |
| 10 | 快速移动速度X/Y/Z Max move speed (m/min) | 12/12/12 |
| 11 | 定位精度 Positioning accuracy (mm/L) | 0.005/300 |
| 12 | 重复定位精度 Repetitive positioning accuracy (mm/L) | 0.003/300 |
| 13 | 驱动方式 Drive type | 电主轴 (electric type) |
| 14 | 主轴最高转速 Max spindle speed (rpm) | 18000 |
| 15 | 主轴电机功率 Spindle power (kW) | 7.5 |
| 16 | 主轴锥孔 Spindle type | ER32 |
| 17 | 机床重量 Machine weight (T) | 5 |
| 18 | 机床尺寸 Machine size (mm) | 2700*2200*2700 |
| 19 | 刀库容量 ATC ( T) | |
| 20 | 数控系统 Control system | 新代22MA (SYNTEC 22MA) |
