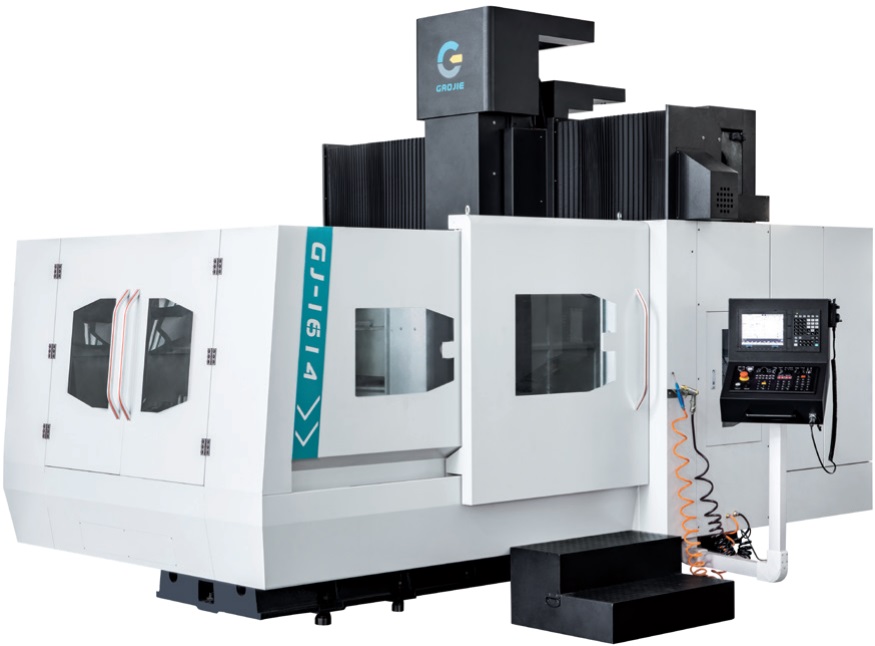

ProductsTwo-line one-hard CNC gantry milling > GJ-1614 Two-wire and one hard CNC gantry milling machine
Product Profile：
Contacts：13777020080
GJ-1614 Two-wire and one hard CNC gantry milling machine Technical Parameters：
| 序号 | 配 套 件 名 称 | GJ-1614 |
| 1 | X轴行程 X axis travel (mm) | 1600 |
| 2 | Y轴行程 Y axis travel (mm) | 1400 |
| 3 | Z轴行程 Z axis travel (mm) | 800 |
| 4 | 龙门有效宽度 Distance between two columns (mm) | 1400 |
| 5 | 工作台面到主轴端面的距离 Distance from worktable to spindle end face (mm) | 150-950 |
| 6 | 工作台尺寸 Worktable size (mm) | 1650*1200 |
| 7 | 工作台承重 Loading of worktable kg | 3000 |
| 8 | T型槽规格 T-groove size (mm) | 22*150*7 |
| 9 | 最大切削速度X/Y/Z Max cutting speed (m/min) | 10/10/10 |
| 10 | 快速移动速度X/Y/Z Max move speed (m/min) | 24/24/24 |
| 11 | 定位精度 Positioning accuracy (mm/L) | 0.005/300 |
| 12 | 重复定位精度 Repetitive positioning accuracy (mm/L) | 0.003/300 |
| 13 | 驱动方式 Drive type | 同步带 |
| 14 | 主轴最高转速 Max spindle speed (rpm) | 6000 |
| 15 | 主轴电机功率 Spindle power (kW) | 11/15 |
| 16 | 主轴锥孔 Spindle type | BT40 dia:140 |
| 17 | 机床重量 Machine weight (T) | 15.0 |
| 18 | 机床尺寸 Machine size (mm) | 5130*3500*3100 |
| 19 | 刀库容量 ATC ( T) | 24T |
| 20 | 数控系统 Control system | 新代22MA |
