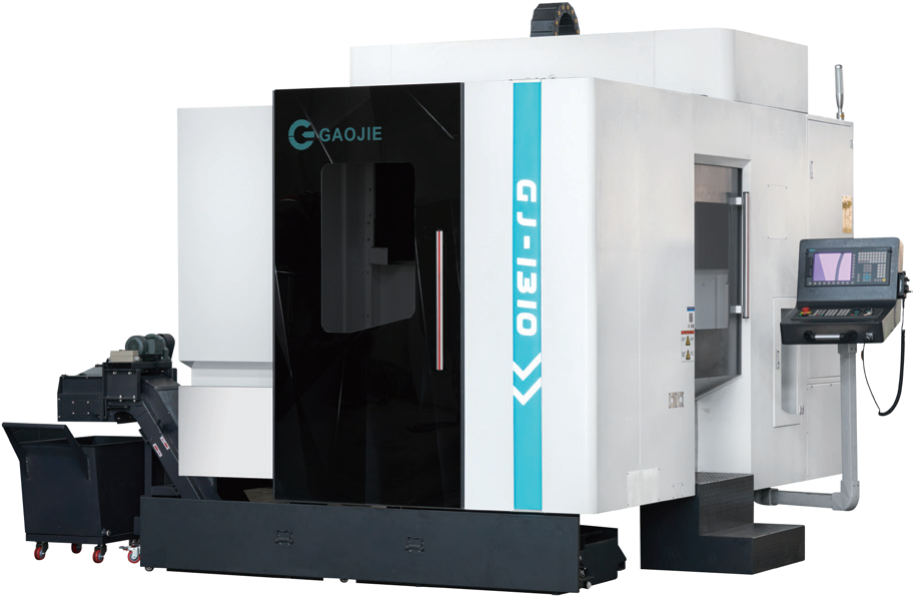

GJ-1310 High-speed milling Technical Parameters：
| 序号 | 配 套 件 名 称 | GJ-1310 |
| 1 | X轴行程 X axis travel (mm) | 1000 |
| 2 | Y轴行程 Y axis travel (mm) | 1300 |
| 3 | Z轴行程 Z axis travel (mm) | 500 |
| 4 | 龙门有效宽度 Distance between two columns (mm) | 1130 |
| 5 | 工作台面到主轴端面的距离 Distance from worktable to spindle end face (mm) | 200-700 |
| 6 | 工作台尺寸 Worktable size (mm) | 1000*1300 |
| 7 | 工作台承重 Loading of worktable kg | 2000 |
| 8 | T型槽规格 T-groove size (mm) | 18*160*6 |
| 9 | 最大切削速度X/Y/Z Max cutting speed (m/min) | 10/10/10 |
| 10 | 快速移动速度X/Y/Z Max move speed (m/min) | 15/15/15 |
| 11 | 定位精度 Positioning accuracy (mm/L) | 0.005/300 |
| 12 | 重复定位精度 Repetitive positioning accuracy (mm/L) | 0.003/300 |
| 13 | 驱动方式 Drive type | 机械主轴 |
| 14 | 主轴最高转速 Max spindle speed (rpm) | 15000 |
| 15 | 主轴电机功率 Spindle power (kW) | 11/15 |
| 16 | 主轴锥孔 Spindle type | HSK A63 |
| 17 | 机床重量 Machine weight (T) | 9.0 |
| 18 | 机床尺寸 Machine size (mm) | 4100*2650*3300 |
| 19 | 刀库容量 ATC ( T) | 24T |
| 20 | 数控系统 Control system | M80/828D |
