Product Profile：
Contacts：13777020080

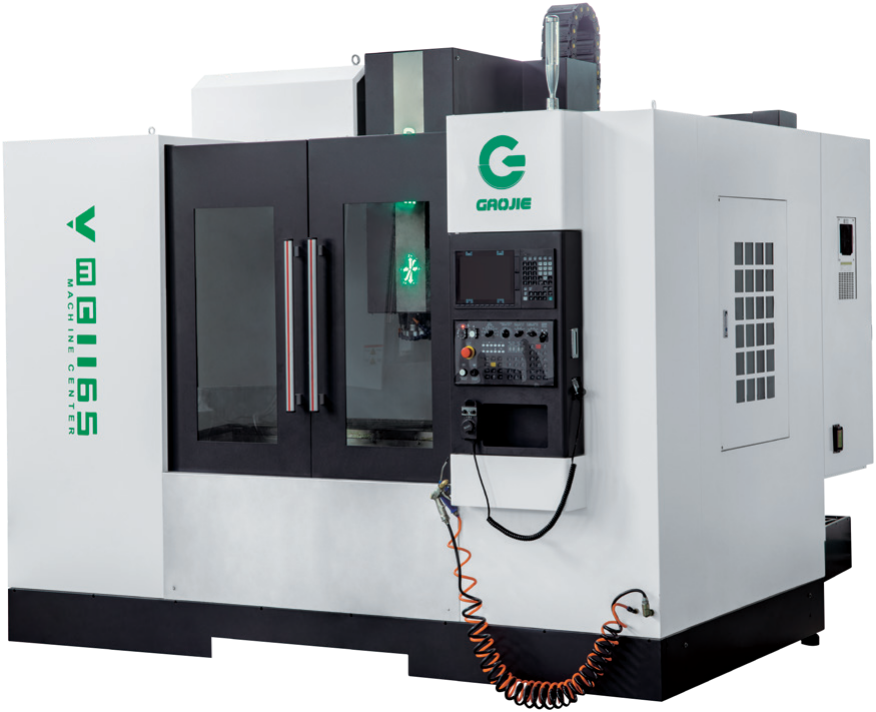

VMC-1165 Vertical machining centers are suitable for small and medium-sized batch processing of a variety of complex parts such as small and medium-sized boxes, plates, discs, valves, shells, molds, etc. They are widely used in precision parts, precision molds, 5G products, hardware, auto parts, and medical equipment industries.
VMC-1165 Vertical Machining Center Technical Parameters：
| 序号 | 配 套 件 名 称 | VMC-1165 |
| 1 | X轴行程 X axis travel (mm) | 1100 |
| 2 | Y轴行程 Y axis travel (mm) | 650 |
| 3 | Z轴行程 Z axis travel (mm) | 650 |
| 4 | 龙门有效宽度 Distance between two columns (mm) | 710 |
| 5 | 工作台面到主轴端面的距离 Distance from worktable to spindle end face (mm) | 130-730 |
| 6 | 工作台尺寸 Worktable size (mm) | 1200*600 |
| 7 | 工作台承重 Loading of worktable kg | 800 |
| 8 | T型槽规格 T-groove size (mm) | 18*100*5 |
| 9 | 最大切削速度X/Y/Z Max cutting speed (m/min) | 10/10/10 |
| 10 | 快速移动速度X/Y/Z Max move speed (m/min) | 36/36/36 |
| 11 | 定位精度 Positioning accuracy (mm/L) | 0.005/300 |
| 12 | 重复定位精度 Repetitive positioning accuracy (mm/L) | 0.003/300 |
| 13 | 驱动方式 Drive type | 同步带/直联 |
| 14 | 主轴最高转速 Max spindle speed (rpm) | 8000/12000 |
| 15 | 主轴电机功率 Spindle power (kW) | 5.5/7.5或7.5/11 |
| 16 | 主轴锥孔 Spindle type | BT40/BBT40 |
| 17 | 机床重量 Machine weight (T) | 6.2 |
| 18 | 机床尺寸 Machine size (mm) | 3000*3200*3000 |
| 19 | 刀库容量 ATC ( T) | 24T |
| 20 | 数控系统 Control system | M80/Oi MF Plus |
